FEA Boundary Condition Errors: The Critical Mistakes That Ruin Structural Analysis

The accuracy of structural analysis isn't determined by mesh or material properties alone. What makes or breaks the results is how you constrain the model and apply loads — in other words, the boundary conditions. Let's look at how over-constraining, rigid body motion, and load application mistakes can derail your results.

You run a simulation, the solver converges just fine, but the displacement values make no sense — or worse, the model flies off the screen. If you've done structural analysis, chances are you've been there at least once. Nine times out of ten, it's because the boundary conditions were set up wrong.

Yet many engineers fixate on mesh density and material properties. How the model is actually anchored and loaded gets pushed to the back burner — even though that's exactly what determines whether the results can be trusted.

What Are Boundary Conditions?

Boundary conditions (BCs) are the mathematical constraints applied to nodes or elements of a finite element model. Put simply, they're the mechanism that replicates how a structure interacts with its surrounding environment. Which degrees of freedom (DOFs) to fix, where to apply forces or pressures, how parts come into contact — all of this is governed by boundary conditions.

Getting this right isn't just "one more setting." If the boundary conditions are poorly defined, the system of equations won't close, the stiffness matrix becomes singular, and the solver can't find a solution at all. It's both the starting point of any analysis and the most common place where things go wrong.

Over-Constraining and Rigid Body Motion: Two Extremes, Same Trap

In a 3D structural analysis, each node has six degrees of freedom — three translational, three rotational. To prevent rigid body motion, where the model drifts freely through space, you need to constrain at least three translational DOFs.

But the problem also strikes from the opposite direction. The instinct to "just fix everything to be safe" — locking down every node in sight — ranks among the most common mistakes.

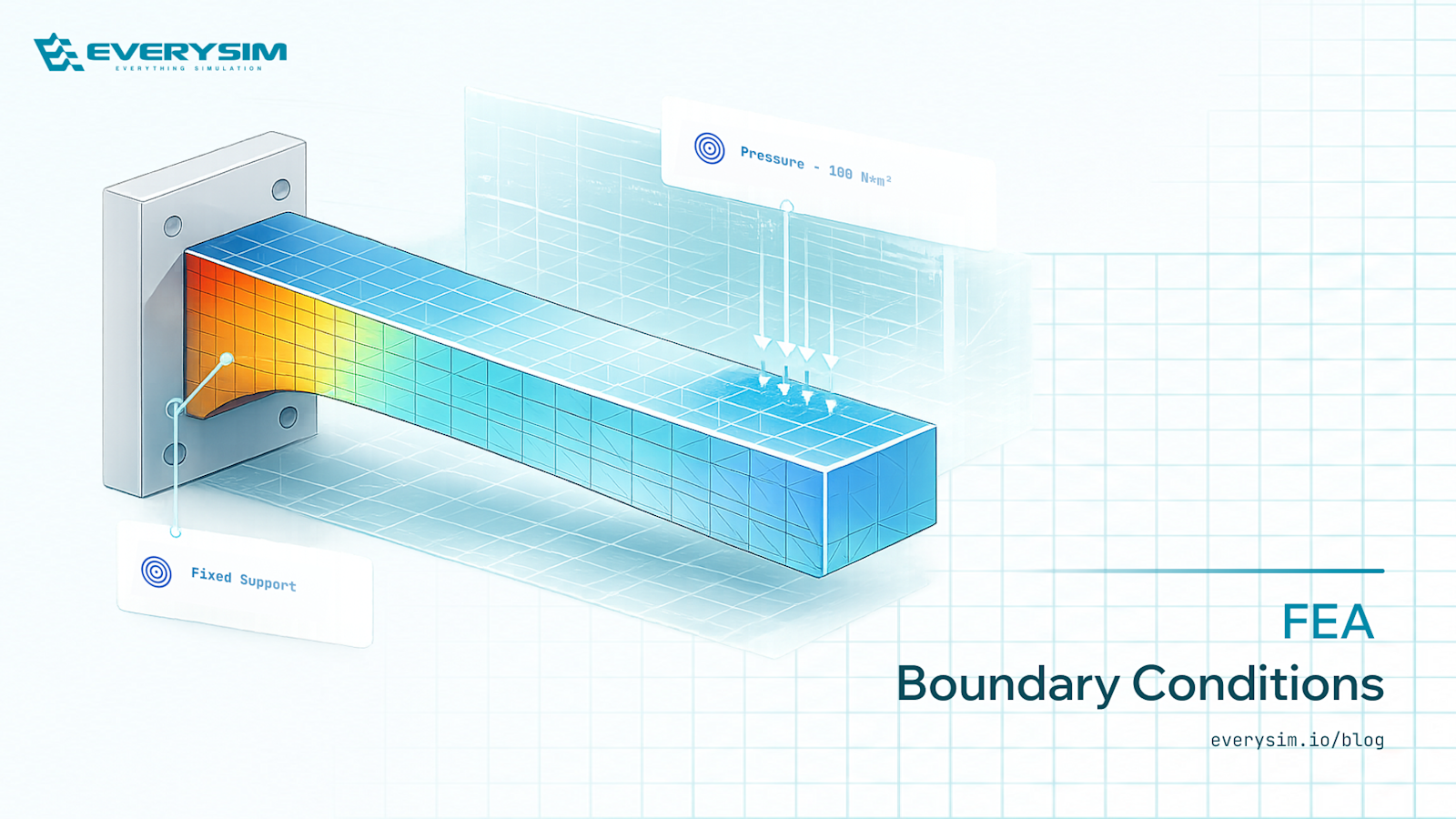

Over-constraining happens when you apply more constraints than the physics allows. If you lock a node that should be free to rotate, artificial membrane stresses appear out of nowhere. Consider a cantilever beam: if you fix all DOFs at a single center node instead of constraining the entire face, the beam behaves unrealistically stiff, and spurious stress concentrations show up around that point.

Apply Loads Wrong and Stress Shoots to Infinity

How you apply loads is another frequent source of boundary condition errors. Here's a scene that plays out all the time: an engineer slaps a point load on a single node to represent a bolt or pin. It's computationally cheap, which makes it tempting.

But it comes at a cost. As the loaded area approaches zero, stress diverges to infinity, creating a stress singularity. No matter how fine you make the mesh, the stress at that point just keeps climbing.

The proper remedy is to use distributed loads or a sub-modeling approach. If you absolutely must use a point load, at least verify that the local stress there isn't the critical design driver. One more thing: pressure loads should be applied to faces, not edges. It's as basic as it gets, yet it gets overlooked surprisingly often.

Contacts and Joints: The Unexpected Pitfalls

Contact definitions govern how surfaces interact with each other. A common mistake here is applying "bonded" contact to surfaces that should be sliding.

Bonded contact merges nodes together, effectively turning two parts into a single monolithic body. But what if the actual interface involves friction and relative movement? The moment you apply bonded contact, stiffness gets inflated and slip gets underestimated. The entire analysis starts drifting away from reality.

Joints also quietly introduce constraints. A revolute joint frees rotation but fixes translation. If you accidentally assign a fixed joint instead, all relative motion gets blocked and reaction forces come out unrealistically high. That's why it's essential to make a habit of checking which DOFs are released every time you define a joint.

EverySim's Automated Boundary Condition Validation

EverySim is built to systematically guide engineers through the entire FEA setup process. The key design choice is that boundary conditions are assigned at the face level, not the node level. Because loads and constraints are applied to geometric faces, the risks of stress singularities from point loads and over-constraining of individual nodes are eliminated from the start.

During project setup, the platform flags warnings on the spot whenever boundary conditions are poorly defined. It automatically detects cases where constraints are insufficient to prevent rigid body motion, or where unnecessary constraints are introducing artificial stiffness. At any stage of the setup, engineers can check the Task Panel for diagnostic messages and specific recommendations on how to improve their configuration before running the solve. This guided workflow catches common boundary condition errors early, reducing failed solves and improving result accuracy.

EverySim is actively evolving — and this is just the beginning. With every update, we're expanding what the platform can do, from a growing library of contact types to more refined boundary condition options. Our goal is simple: give engineers the tools they need to simulate with confidence, and make the experience better every step of the way.

Conclusion

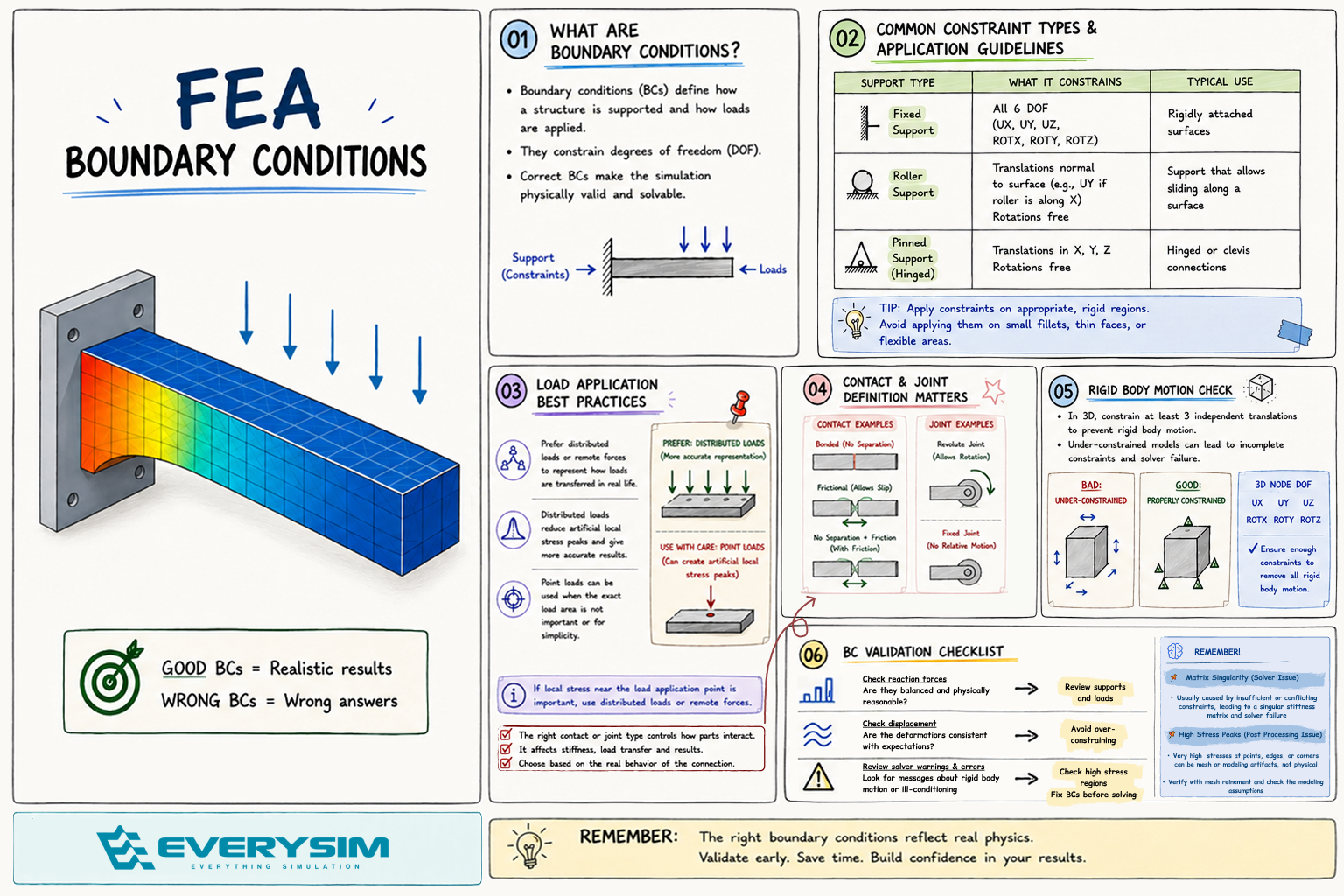

Boundary condition errors are among the most common — and most consequential — mistakes in finite element analysis. Over-constraining artificially stiffens your model, under-constraining lets it fly off into space, and a misapplied point load can produce stress values that have no physical meaning. The frustrating part is that the solver will often converge anyway, giving you a clean-looking result that is quietly wrong.

The fix is not more mesh refinement or a finer time step. It starts with understanding the physics you are trying to represent and translating that into the correct DOF constraints, load distributions, and contact definitions. Review your reaction forces, check for solver warnings, and question any result that seems too stiff or too compliant.

EverySim is built to make this process less error-prone. Face-based constraint assignment, real-time validation, and guided diagnostics in the Task Panel catch common BC mistakes before they waste compute time — so you spend less time debugging and more time engineering.

Frequently Asked Questions

Why does rigid body motion occur? It happens when there aren't enough constraints to keep the model from moving freely in 3D space. The usual cause is unfixed translational DOFs, which makes the stiffness matrix singular.

How can I tell if my model is over-constrained? Start by examining the reaction forces and displacements. If a node is fixed in all DOFs but should physically be free to rotate, you'll see artificial stress concentrations. It's also worth checking the solver output for any "over-constraint" warnings.

What is a stress singularity and how do I fix it? It's a point where stress diverges to infinity due to geometric features like sharp corners or load application methods like point loads. You can address it by switching to distributed loads, adding fillets, or using sub-modeling to refine the mesh locally.

How do boundary conditions affect convergence? Incorrect boundary conditions can cause the solver to diverge or converge to a wrong solution. Over-constraining inflates stiffness artificially, while under-constraining allows rigid body motion. Both are equally dangerous in that they destabilize the equilibrium equations.
