Which Propeller Shape Gives You the Most Thrust — And Why?

A drone propeller might look like a simple spinning blade, but its shape quietly determines almost everything about how the aircraft performs. The angle at which the blade meets the air, the width of the blade at different points along its span, and the number of blades on the hub all influence how much lifting force the propeller generates, how much power it draws from the battery, and ultimately how long the drone can stay in the air.

In practice, propeller design is a balancing act. A blade angled more steeply into the airflow — referred to as higher pitch — pushes more air per revolution and generates more thrust. However, this relationship only holds up to a certain point, and it comes at the cost of higher power demand. The effective angle of attack also depends on the operating wind speed, meaning that performance at a given pitch setting can shift depending on flight conditions. Past a critical threshold, the airflow detaches from the blade surface entirely, and energy that should become lift is instead lost to turbulence. Similarly, adding more blades increases the total area pushing air downward, but each additional blade partially flies through the disturbed wake of the one ahead of it, which introduces its own inefficiencies.

These trade-offs are well understood in theory, but seeing them play out in actual aerodynamic data is a different thing. Physical testing on a thrust stand gives you two numbers — force and power — but it cannot show you where on the blade the thrust is being generated, or where the airflow is breaking down. To answer those questions, you need to look inside the flow field itself.

That is what we did. Using EverySim's parametric propeller generator, we designed three propellers with the same diameter and hub, ran each one through a CFD simulation under identical conditions, and compared what the air actually does around each blade shape.

The three contenders

We changed one variable at a time so each comparison teaches a clear lesson.

Case A — "The Cruiser" is our baseline: a 2-blade propeller with gentle pitch angles, designed for smooth, efficient airflow. This is the marathon-runner philosophy behind most consumer drones that prioritize flight time.

Case B — "The Lifter" is identical to Case A in every way except blade count — it has three blades instead of two. Same pitch, same chord, same thickness. This isolates one question: what does adding a blade actually do?

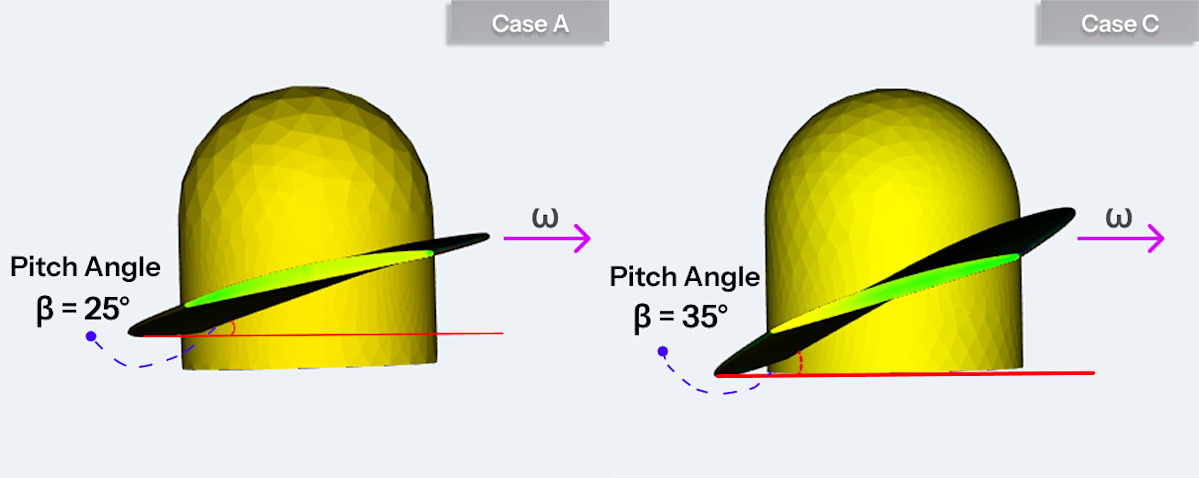

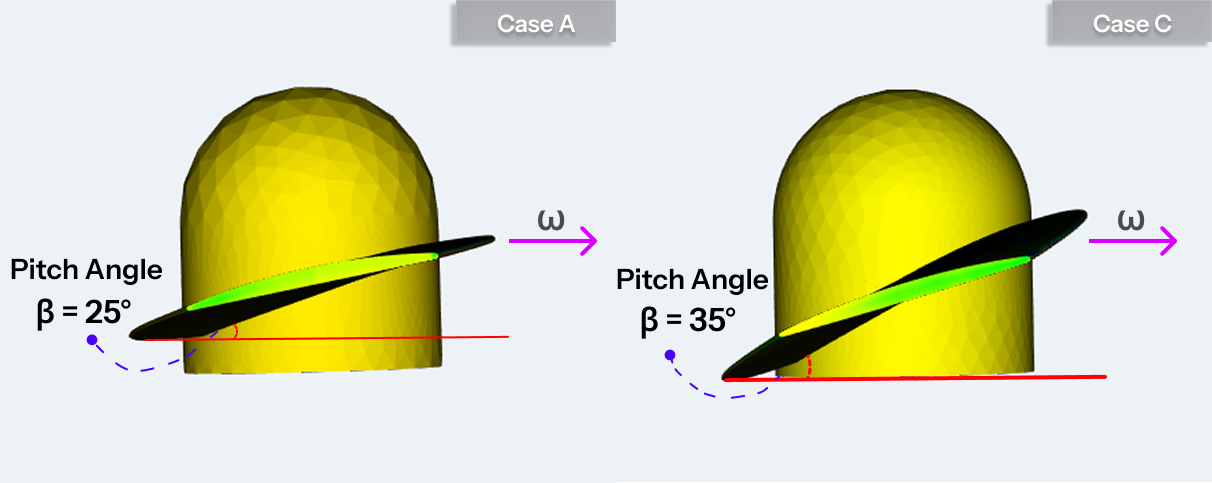

Case C — "The Aggressor" keeps the same two-blade layout as Case A but roughly doubles the pitch angles at every section. Where the Cruiser gently slices, the Aggressor bites. This isolates the pitch question: what happens when you crank up the angle of attack?

Case A vs. Case B — blade count comparison (all other parameters identical)

Case A vs. Case C — pitch angle comparison (both 2-blade)

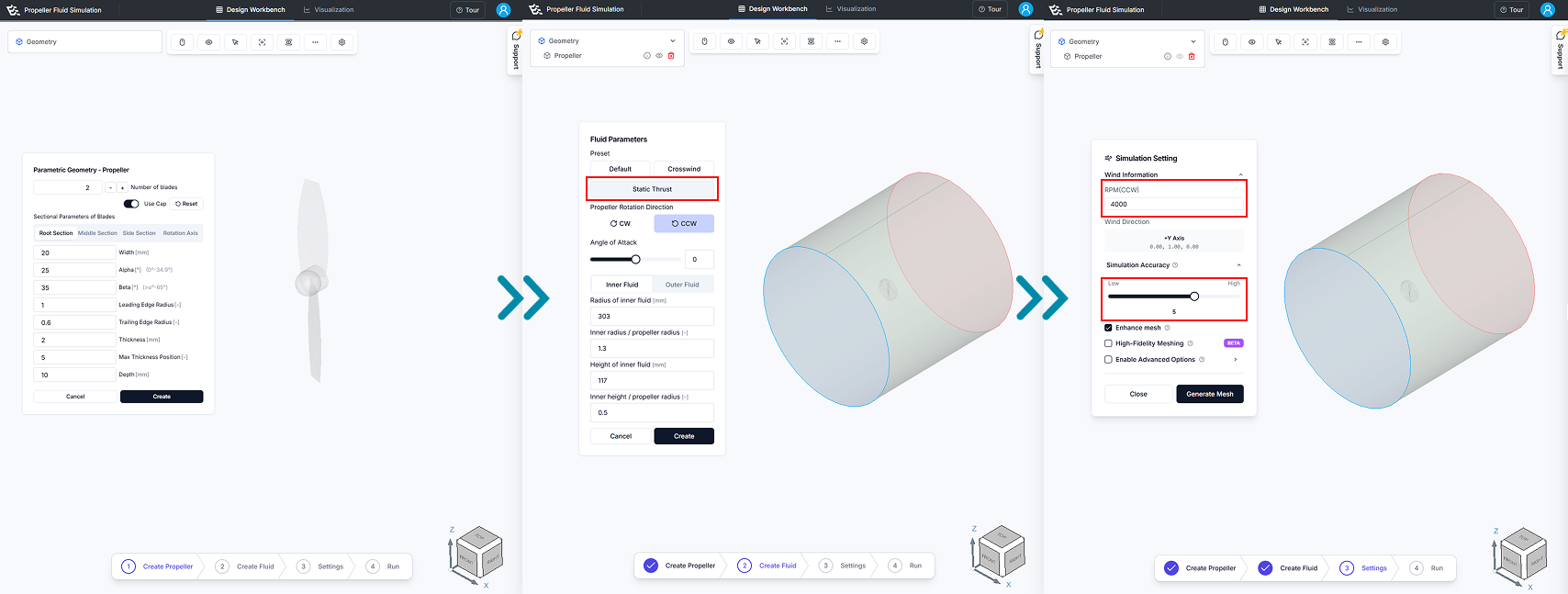

Setup

All three propellers share the same 460 mm diameter and hub dimensions. The only differences are blade count (Cases A and C have 2, Case B has 3) and pitch angles (Case C has alpha and beta values roughly doubled across root, middle, and tip sections).

Every simulation ran under identical conditions:

The scoreboard

Two comparisons, two very different stories.

Round 1 — Adding a blade (Case A vs. Case B)

The Lifter produces 11% more thrust at a cost of 15% more power. In raw thrust-per-watt, it's slightly less efficient. But its Figure of Merit is marginally better (0.566 vs. 0.558) — meaning the three-blade design is actually closer to an aerodynamically ideal propeller disk.

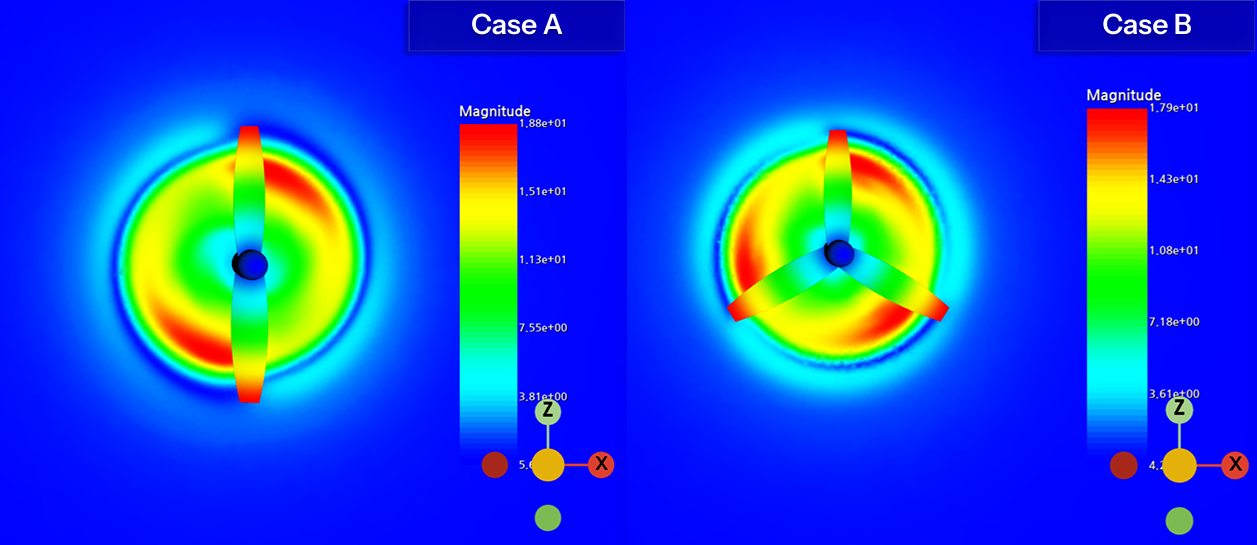

The flow visualizations explain why. In the velocity wake downstream of the propeller, the Cruiser shows two distinct high-velocity lobes with gaps between them. The Lifter shows three overlapping lobes that create a more uniform velocity disk. In theory, a perfectly uniform disk is maximally efficient — the three-blade wake comes closer to that ideal.

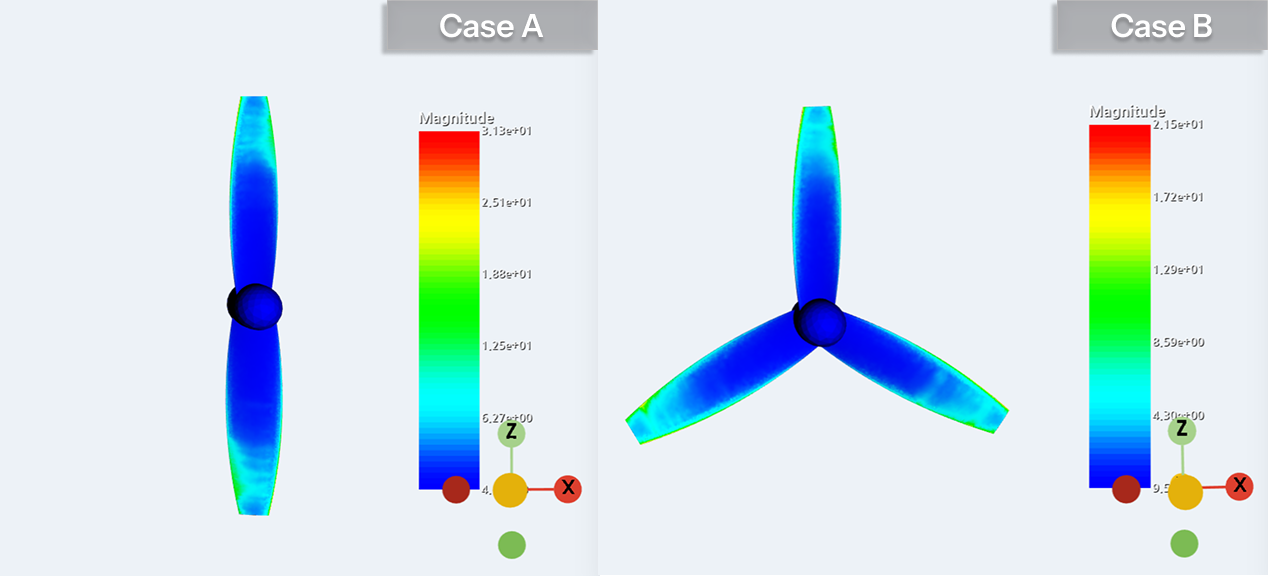

The surface shear images confirm that both designs operate cleanly. Uniform blue across both blade surfaces with thin strips of elevated shear along the leading edges — textbook attached flow. No separation, no turbulence, no wasted energy. The Lifter's peak shear is actually lower (21 Pa vs. 31 Pa) because the workload is spread across more blade area.

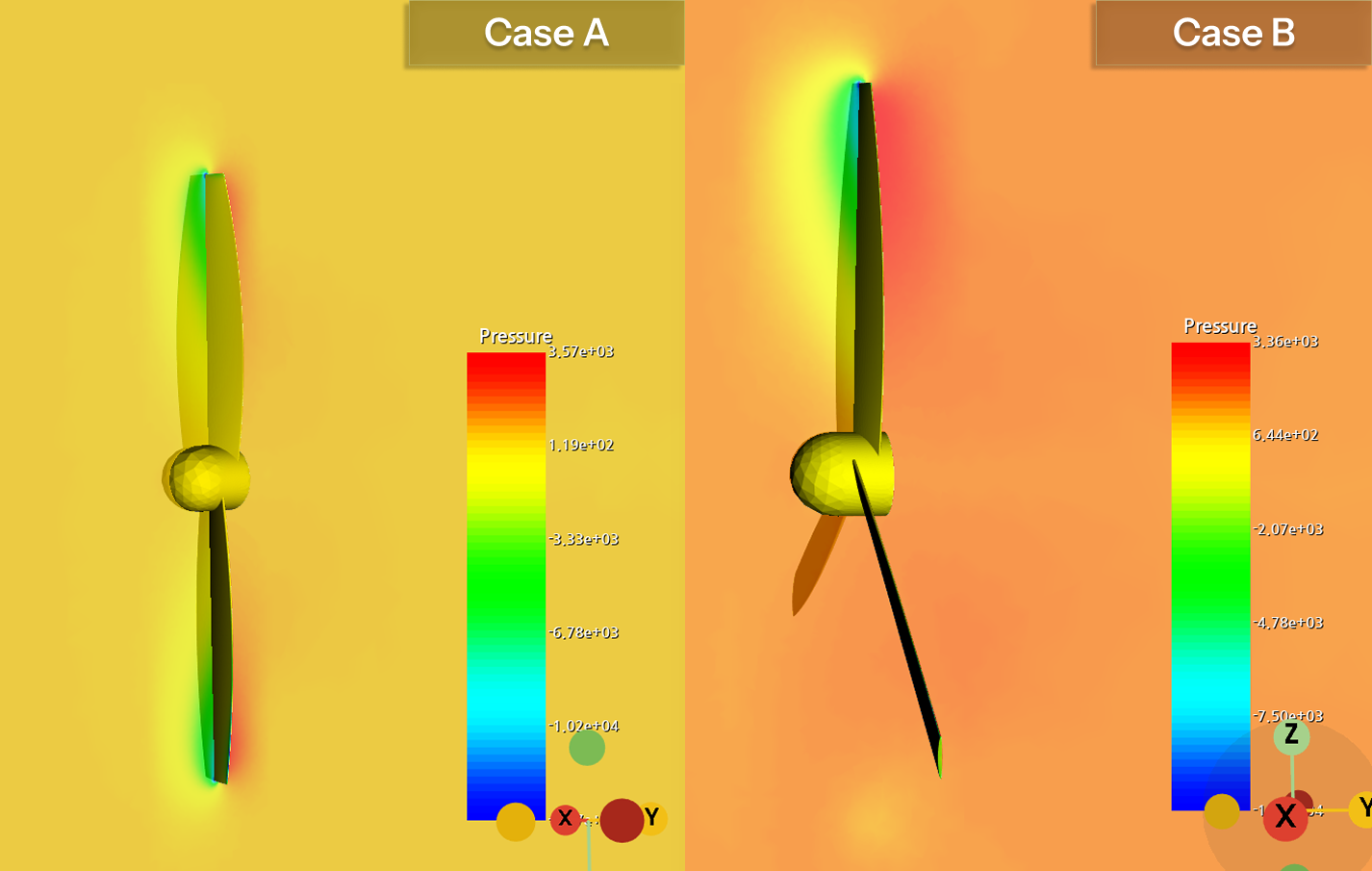

The pressure distribution further illustrates the difference. The 3-blade propeller has a greater total blade surface area by virtue of the additional blade, which means more area actively generating a pressure differential. Additionally, the peak pressure on the pressure side of the 3-blade design is roughly five times higher than that of the 2-blade configuration at the same pitch — resulting in a higher overall thrust value despite the identical blade geometry per blade.

The takeaway: Adding a blade is a safe, modest upgrade. You gain 11% thrust with clean, well-behaved aerodynamics. No penalties, no surprises.

Round 2 — Cranking up the pitch (Case A vs. Case C)

This is where the simulation earns its keep.

The Aggressor produces 59% more thrust — 30.09 N vs. 18.88 N. On a test bench, that looks like a clear winner. But the power bill is staggering: 659.7 W vs. 230.6 W, an increase of 186%. Nearly three times the power for 60% more thrust. The Figure of Merit collapses from 0.558 to 0.392 — meaning 61% of the motor's energy is being dissipated as heat, turbulence, and noise.

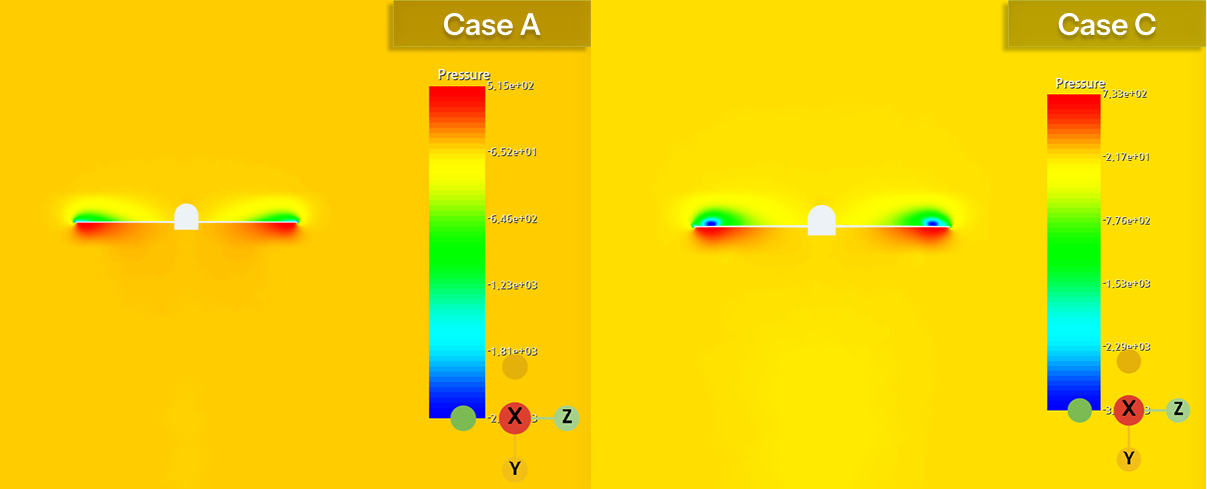

The pressure cut planes show the first clue. The Aggressor's pressure range is enormous: -6,050 to +1,930 Pa, nearly triple the Cruiser's -2,390 to +515 Pa. That's where the thrust comes from — raw pressure force. But look beyond the blade: the Cruiser keeps its pressure field tightly contained around the blade surface, while the Aggressor radiates orange and red pressure disturbances away from the blade into the surrounding air. That's energy your motor paid for that never became thrust.

Think of pitch like the angle of a paddle in water. A gentle angle slices through cleanly — efficient, controlled. Steepen it and you shove more water per stroke, but you also splash everywhere. That splash is wasted energy.

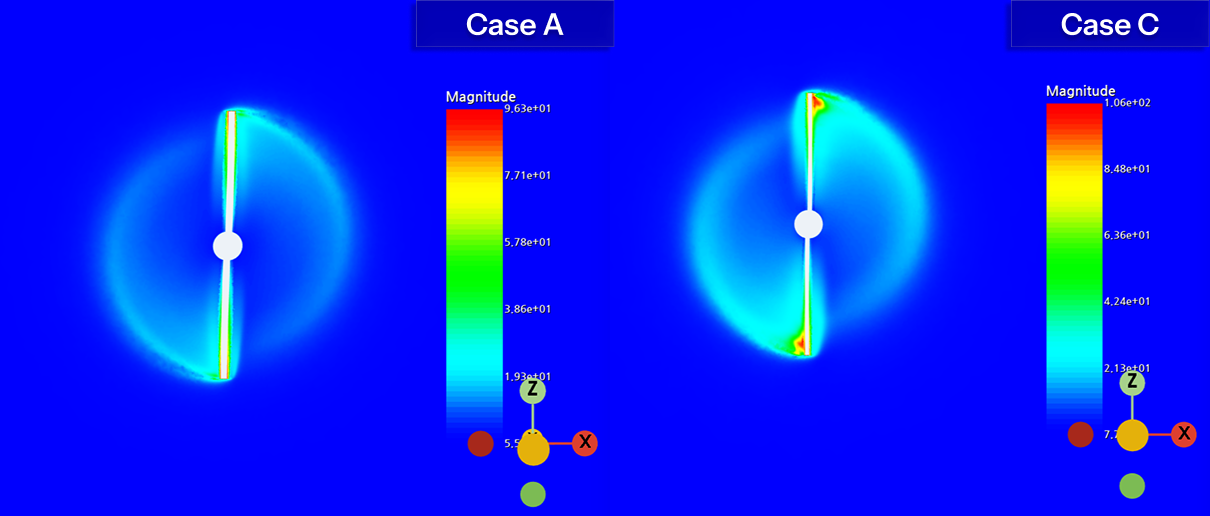

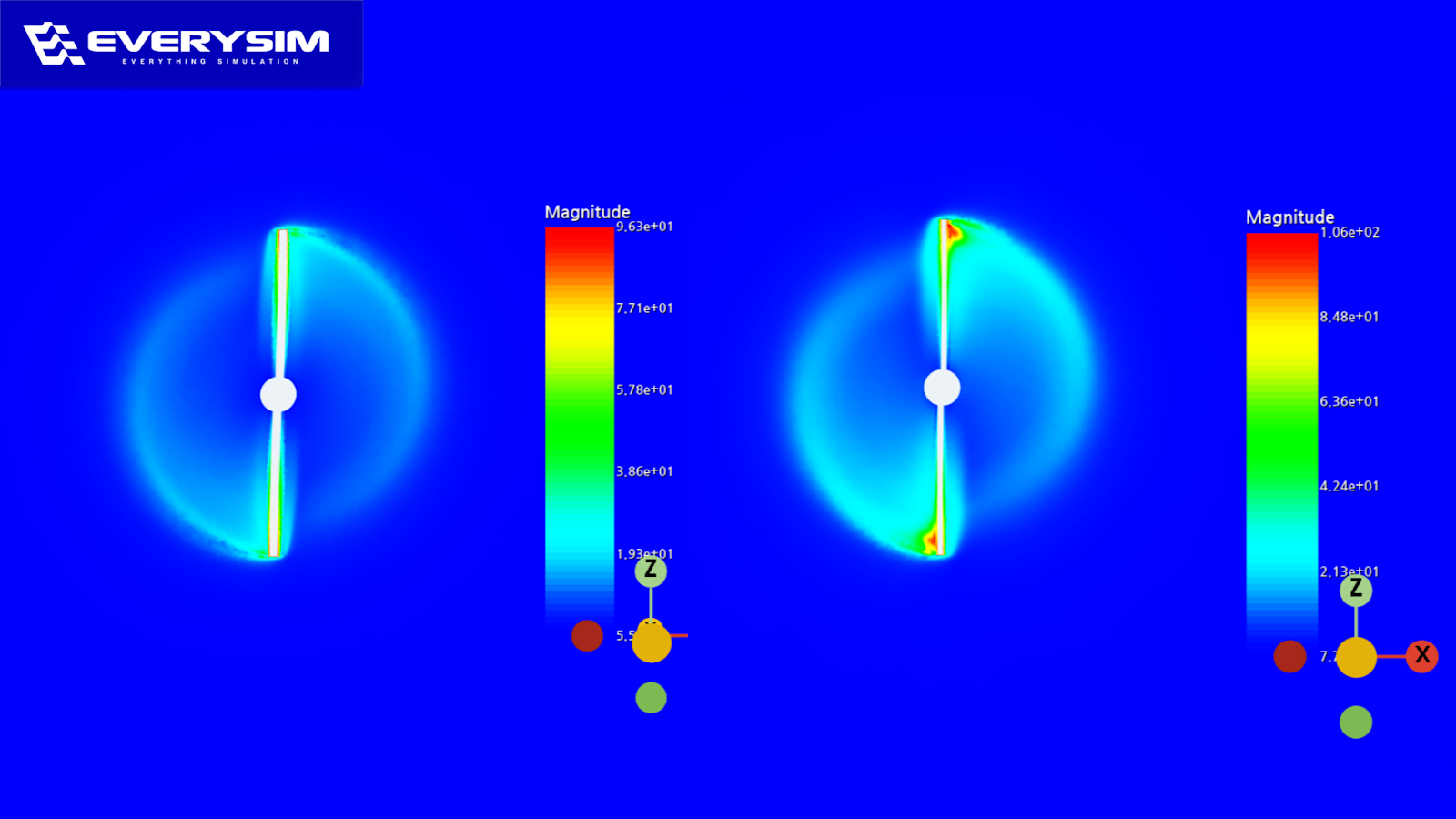

The velocity cut through the blade reveals the mechanical cause. On the Cruiser, airflow wraps smoothly around the blade cross-section — textbook attached flow. On the Aggressor, the blade tips show chaotic red and orange patches: localized high-velocity zones that are asymmetric and irregular. This is flow separation. The air can no longer follow the blade surface at these aggressive angles. It detaches, rolls into turbulent eddies, and dumps its kinetic energy as heat.

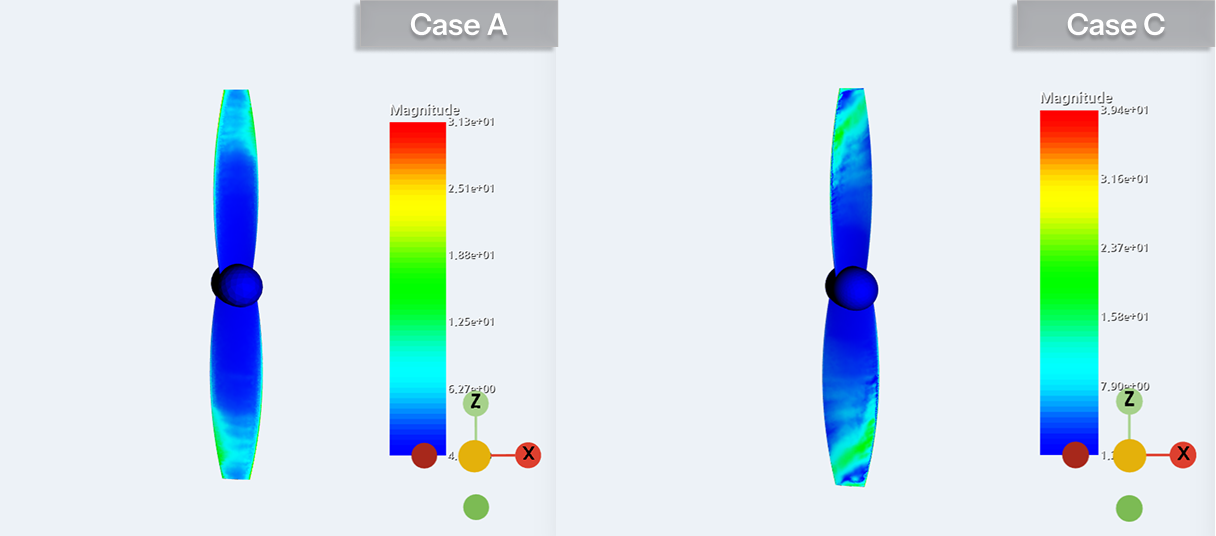

The surface shear distribution offers additional supporting evidence. The Cruiser's blade surface is uniformly calm, indicating a well-behaved boundary layer. The Aggressor's, by contrast, shows irregular, streaky patches across the mid-span and tip regions — zones where the boundary layer is fighting to stay attached. These patterns are consistent with the early stages of aerodynamic stall.

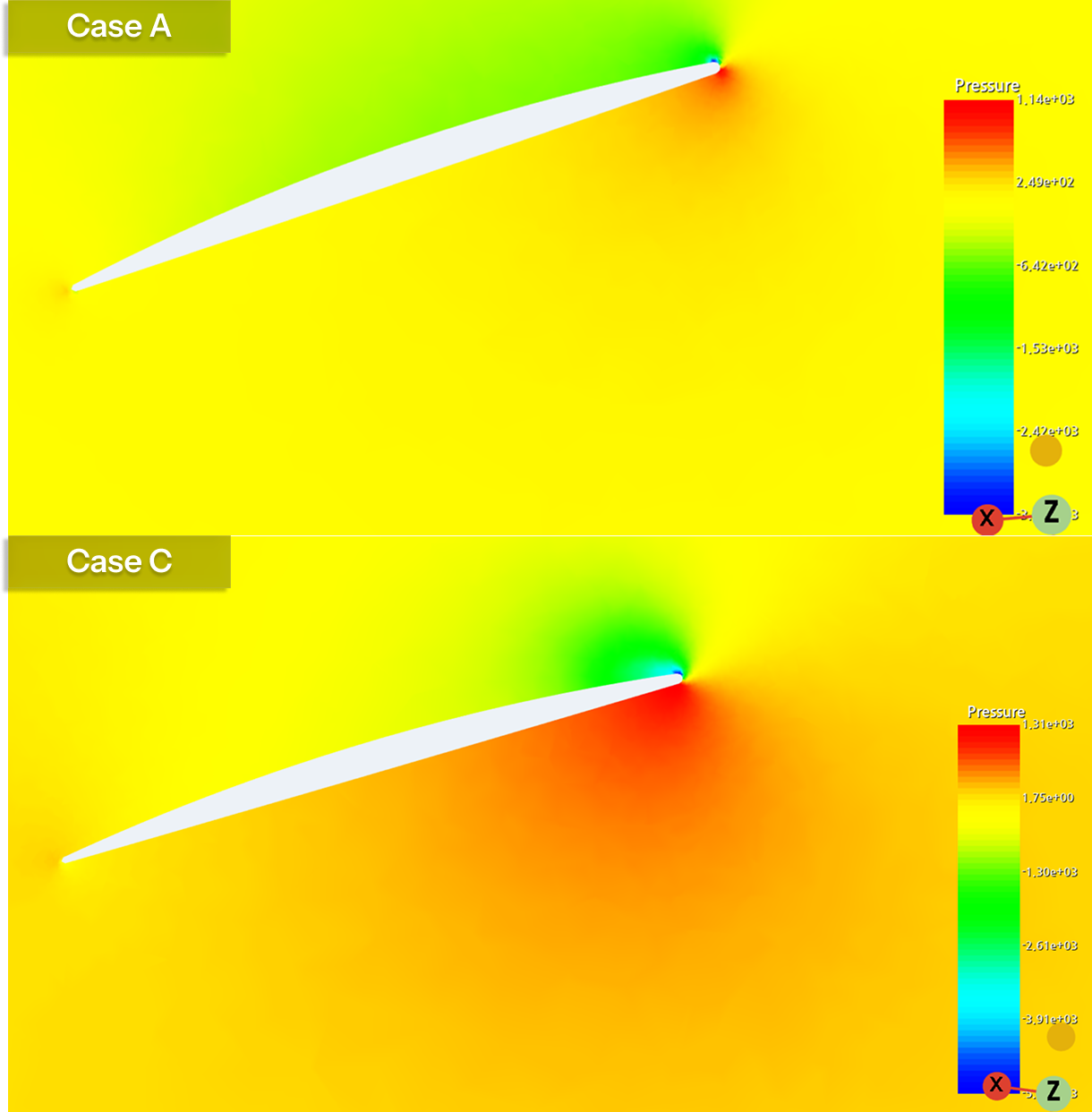

When we increase the blade pitch angle under static thrust conditions, the effective angle of attack increases along with it. Because there is no incoming axial flow to offset the blade angle, the air meets the blade at a steeper incidence than it would in forward flight. This produces a larger pressure differential downstream of the propeller, which drives the higher thrust. At the same time, the steeper angle increases aerodynamic drag on each blade, raising the required torque and consequently the power consumption.

The takeaway: more pitch does mean more thrust, but the relationship is not linear. The first few degrees of pitch increase buy efficient, well-attached thrust with manageable power costs. Beyond that, the penalty in flow separation and wasted power grows rapidly. A thrust stand would tell you the Aggressor produces 60% more force. Only the simulation reveals that 61% of its input energy is being dissipated rather than converted to useful thrust. It is also worth noting that there exists an optimum pitch angle up to which incremental gains in lift can be achieved — beyond that point, flow separation dominates and the blade enters stall, at which point further pitch increases become counterproductive.

Conclusion: there is no best propeller

If you're designing for maximum flight time — survey, mapping, inspection — the Cruiser's 2-blade low-pitch design is your answer. It converts 56% of shaft power into useful thrust, and the flow is clean from root to tip.

If you need more lift without redesigning your power system — the Lifter's third blade is a safe upgrade. Each blade operates within its aerodynamic limits, the wake is more uniform, and the 15% power cost is manageable.

If you need brute force for heavy payloads — the Aggressor delivers, but you're operating in a regime where the physics is working against you. Flow separation at the tips means three times the power for less than twice the thrust.

The propeller question was never "which shape gives the most thrust." It was always "how much inefficiency are you willing to accept — and do you understand where it comes from?"

Now you can see it.
