Vortex Methods: Solving Aerodynamic Problems Without a Volume Mesh

Traditional volume-mesh-based CFD usually starts with the same painful ritual: building the volume mesh. For propellers, rotors, wings, and drone configurations, that mesh can quickly become the single biggest bottleneck in the entire workflow. Vortex methods take a fundamentally different route. Instead of filling the flow domain with cells, they generate a mesh on the surface of the rotational structure and track the flow phenomena from there.

If you've ever spent hours generating a propeller mesh only to realize the near-tip refinement was wrong—or that the rotating region was misconfigured from the start—you already feel the appeal. Vortex methods don't eliminate physics. They eliminate a huge portion of the geometry-to-volume-mesh overhead that slows down early aerodynamic design.

The benefit isn't just a shorter setup process. When simulations are easier to prepare, engineers can evaluate more design alternatives and iterate more quickly.

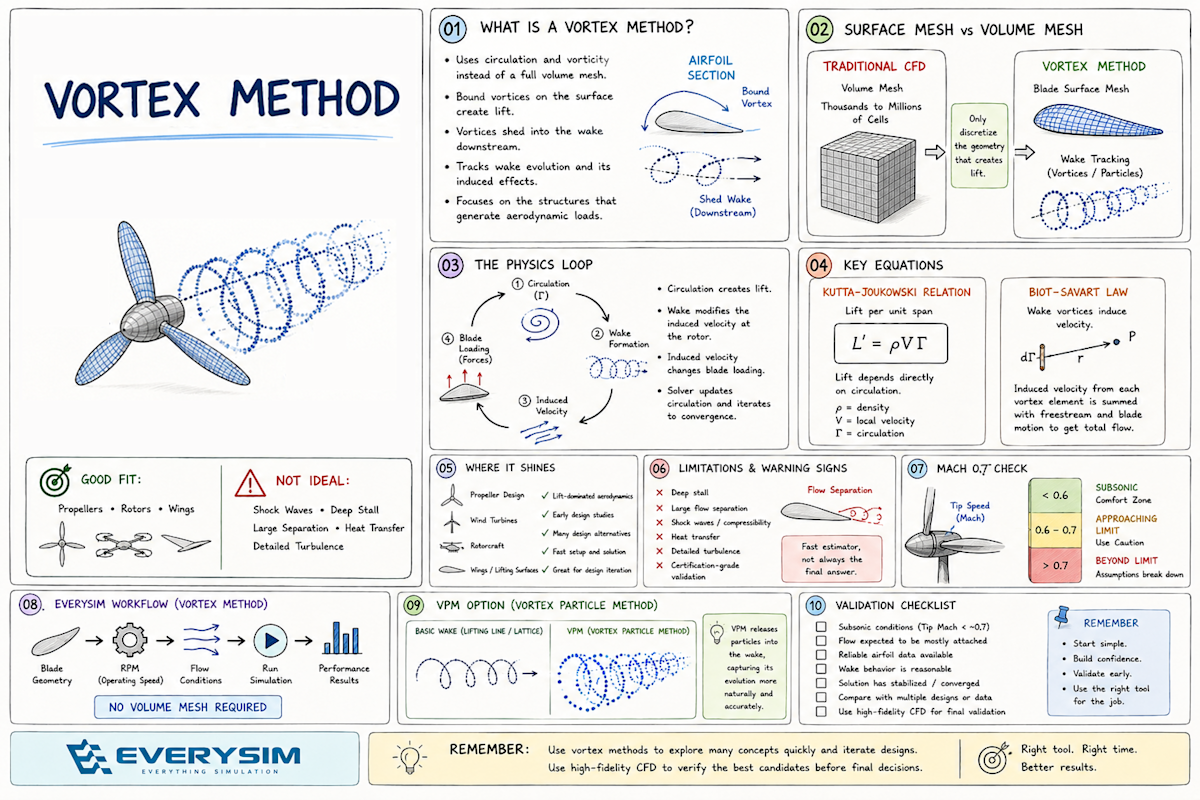

What Exactly Is a Vortex Method?

At its core, a vortex method is a CFD approach that represents aerodynamic effects through circulation and vorticity rather than a full volume mesh. The solver models how lifting surfaces create bound vortices and how those vortices shed into the wake downstream.

The central idea traces back to a foundational fact of aerodynamics: lift is tied to circulation. Around any wing section or blade element, the flow develops a net rotational tendency. That circulation produces a pressure difference, and that pressure difference becomes lift or thrust.

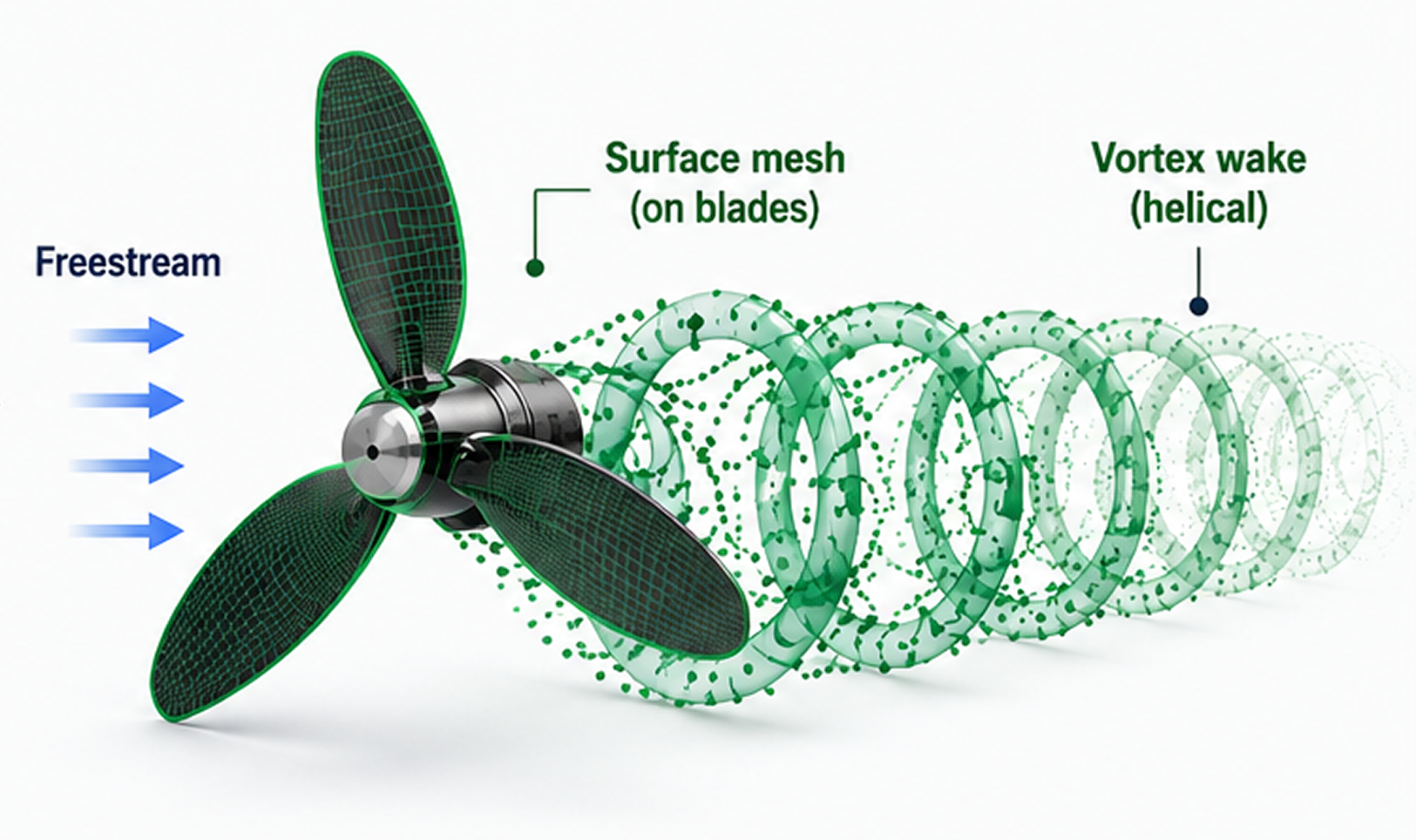

For a propeller, each blade section contributes its own circulation. As the blade rotates, it sheds a helical wake behind it. The induced velocity from that wake feeds back into the blade loading, making the problem inherently coupled: find the circulation distribution that satisfies the boundary conditions, then update the wake and recalculate forces.

Instead of resolving every detail of the flow field, vortex methods focus on the structures that generate aerodynamic loads:

Where is the circulation? How does the wake evolve? What velocities do those vortex structures induce?

By concentrating on those questions, the method avoids much of the overhead associated with volume-mesh-based CFD.

The Physics Behind It

The physics begins with vorticity: the curl of velocity. In practical terms, vorticity measures local rotation in the flow. When air passes over a lifting surface, that surface generates circulation—not as a mathematical abstraction, but as the most compact description of the pressure-producing structure of the flow. The governing equation that underpins this picture is the Laplace equation.

It's worth pausing on why the Laplace equation governs the picture at all. Vortex methods assume potential flow, neglecting viscosity and compressibility. Under the irrotational assumption the velocity field can be written as the gradient of a velocity potential (V = ∇φ); combine that with the incompressible continuity equation (∇·V = 0) and you arrive at ∇²φ = 0—the Laplace equation. The real flow around a lifting surface is not entirely irrotational, of course: vorticity lives in the boundary layer and the wake. A vortex method handles this by isolating the regions where vorticity is nonzero as singularities—filaments, panels, rings, or particles—and treating only the surrounding irrotational region as a potential field governed by the Laplace equation. Because that equation is linear, the sum of individual solutions is itself a solution, and the induced velocity field of each vortex element corresponds to one of its elementary solutions. That linearity—and the superposition principle it permits—is precisely what lets us simply add up the contributions of every vortex element, as the Biot-Savart law does next.

The Biot-Savart law then calculates the velocity induced by each vortex element—whether it's a filament, panel, ring, or particle. Sum up all those contributions, combine them with the freestream velocity and blade motion, and you recover the local flow conditions seen by the geometry.

For lifting surfaces, the Kutta-Joukowski relation closes the loop between circulation and aerodynamic force:

Lift per unit span = ρ × V × Γ

This is precisely why vortex methods work so well for wings and rotors. They concentrate computational effort on the part of the flow that actually creates aerodynamic loads, rather than resolving the entire surrounding region of space.

For propeller analysis, the blade is divided into radial sections, each defined by its radius, chord, twist, and airfoil profile along with the rotational speed. From that setup, the solver estimates local inflow angle, circulation, thrust, torque, and power. The wake isn't decorative—it's structural. It modifies the induced velocity at the rotor disk, meaning wake modeling is part of the physics, not an optional post-processing step.

This is also why tip speed matters. Vortex formulations generally assume low-speed, largely incompressible aerodynamics. Push too far into compressibility or shock-dominated regimes, and the model leaves its comfort zone. A practical threshold to watch is roughly Mach 0.7 at the blade tip (accounting for both rotational and freestream velocity). Beyond that, the assumptions start to erode.

Why the Surface-Mesh Approach Changes the Workflow

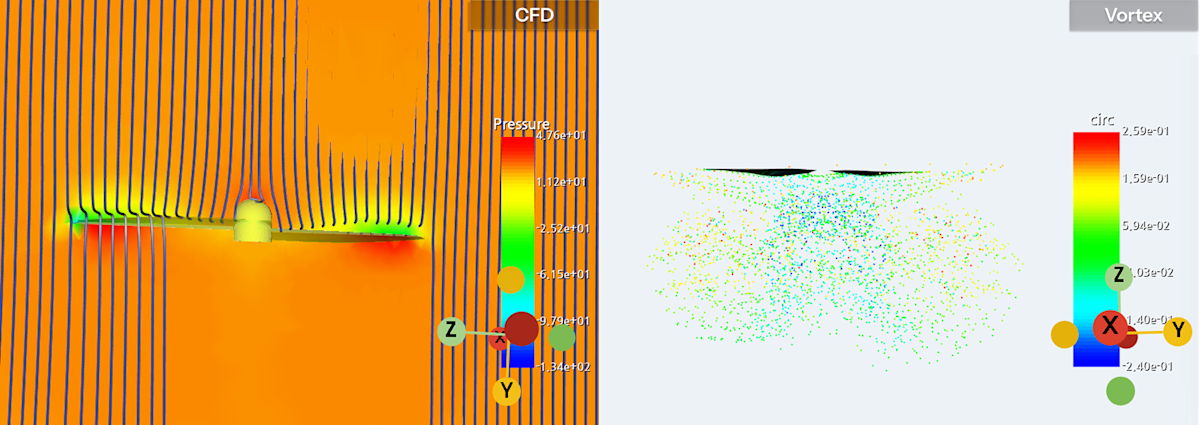

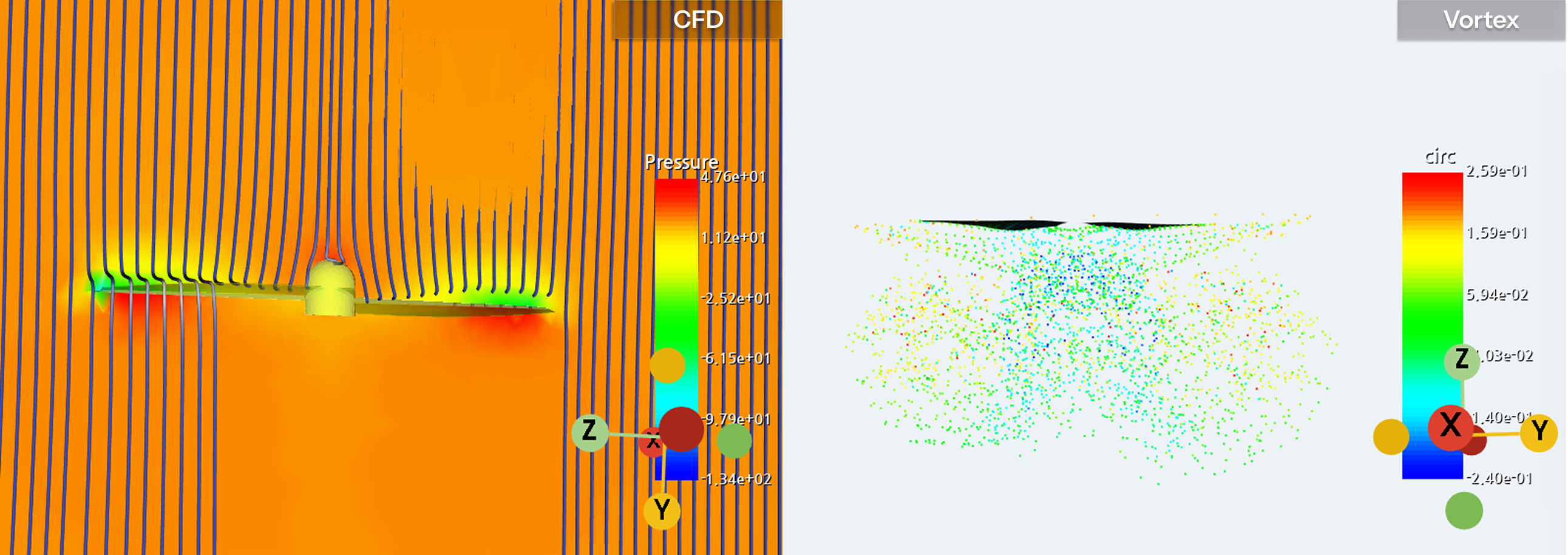

In conventional CFD, the mesh governs almost everything downstream. Poor cell quality near a blade tip can corrupt torque predictions. Inadequate boundary layer resolution can distort drag. A rotating mesh region and its sizing also have to be set correctly. The domain requires inlet, outlet, wall, symmetry, and refinement regions. Even before the solver starts, there's a lot that can go wrong—and usually does, at least once.

Vortex methods sidestep much of that setup entirely.

For propeller analysis, you simply define the blade geometry, airfoil data, RPM, flow direction, and velocity. The job goes straight from design idea to result—no volume mesh step standing in between.

That doesn't make the method "less physical." It means the discretization follows the aerodynamic structure induced by the propeller geometry itself rather than a surrounding box of air.

The practical payoff is speed. Engineers can compare blade count, chord distribution, twist schedule, RPM, hover conditions, and forward-flight velocity far earlier in the design loop. You're no longer forced to pay the full volume-mesh-generation cost for every new concept you want to evaluate.

Where Vortex Methods Shine

Vortex methods are at their best when the dominant question is aerodynamic performance rather than detailed viscous flow structure.

Propellers are a natural fit. The key performance metrics—forces, power, efficiency coefficients—are exactly the quantities a circulation-based method is designed to predict.

Wings and rotorcraft are equally strong candidates, particularly in attached-flow regimes. If the flow is predominantly inviscid, subsonic, and governed by lift generation and wake interaction, a vortex method can produce reliable engineering answers in a fraction of the time.

But the biggest advantage isn't any single simulation. It's iteration speed. You can test whether a twist distribution is reasonable before committing to a high-fidelity volume-mesh CFD run. You can screen a dozen propeller concepts in the time it would take to mesh one. You can evaluate hover versus forward-flight behavior by simply changing freestream velocity. You can catch obvious performance problems before spending compute on high-fidelity validation.

This is where the surface-mesh approach genuinely changes everything: it moves CFD earlier in the design conversation, when it can actually influence decisions.

The Traps: What Vortex Methods Don't Capture Well

The speed comes from assumptions, and those assumptions have boundaries.

Most vortex methods are not designed to resolve viscous boundary layers the way RANS CFD does. They don't naturally capture detailed turbulence, massive separation, deep stall, shock waves, acoustic signatures, or heat transfer. If your design question depends on any of these effects, a vortex method should be treated as a fast estimator—not the final word.

Drag deserves particular caution. Lift-induced drag aligns well with circulation-based modeling, but profile drag and separated-flow drag typically rely on empirical airfoil data or correction models. If the underlying airfoil data is inaccurate, the output can appear precise while being physically misleading. Garbage in, garbage out.

Wake modeling is another sensitive area. A stable, well-behaved wake is one thing. A highly separated, interacting, unsteady wake near complex body geometries is another entirely. Advanced options like Vortex Particle Methods (VPM) can improve wake representation, but they don't transform a low-fidelity aerodynamic model into a high-fidelity RANS CFD solution.

Running Vortex Methods in EverySim

EverySim is built around the idea that early-stage aerodynamic analysis shouldn't require a costly volume-meshing workflow. Its vortex solver, working from a surface mesh, is designed to get engineers from geometry to results with minimal friction.

For propeller analysis, you define your blade geometry—section layout, airfoil shape, chord, twist—along with RPM and flow conditions. EverySim handles the derived quantities (tip speed, timestep, simulation duration) automatically, so you're focused on the design, not the solver housekeeping.

The flow setup is deliberately compact: pick a direction, set a velocity, and run. Zero velocity is interpreted as hover. The interface also keeps an eye on the combined tip-plus-freestream speed and flags conditions that exceed the Mach 0.7 threshold—so you know when you're approaching the edges of the model's validity before you waste a run on unreliable results.

When you need higher wake fidelity, EverySim offers a VPM (Vortex Particle Method) option. Unlike simpler vortex formulations that represent the wake using prescribed vortex structures, VPM models the wake as discrete vortex particles that can move and evolve with the flow. This gives the wake model more room to develop naturally, making it useful for cases where simple fixed-wake assumptions aren't enough.

Results come back as the performance metrics and time histories engineers actually need—not raw solver dumps. No post-processing gymnastics required. That makes it practical not only for simulation specialists, but for design engineers comparing rotor configurations side by side.

Because the vortex workflow skips the volume mesh entirely, the turnaround from "I have a new idea" to "I have numbers to evaluate it" is dramatically shorter.

When to Reach for Vortex—and When to Reach for Volume-Mesh CFD

Reach for a vortex method when:

• You need fast aerodynamic performance results for lifting surfaces, especially propellers and rotors.

• The design is still changing.

• You're comparing many variants and need to identify which ones deserve deeper investment.

Reach for full volume-mesh CFD when:

• The question depends on separated flow, detailed wall-bounded effects, complex turbulence, compressibility, thermal physics, or certification-grade validation.

A vortex run tells you which propeller concept is promising. A high-fidelity CFD run validates the detailed flow behavior around the final candidate.

The best workflow isn't vortex versus volume-mesh CFD. It's vortex before volume-mesh CFD.

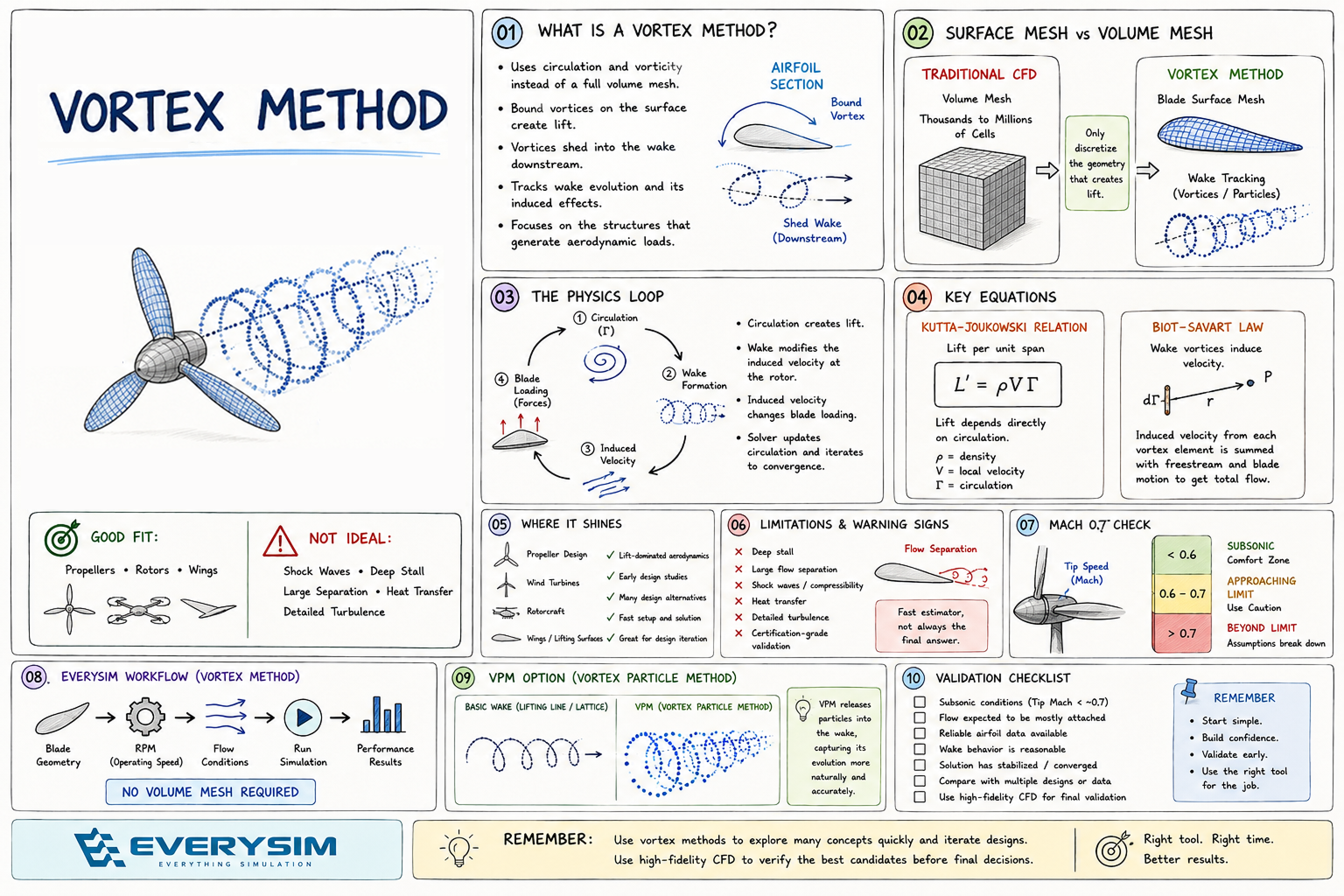

Conclusion

Vortex methods change CFD by changing where the computation starts—at the surface mesh. Instead of meshing a large volume of air, they model the circulation and wake structures that drive aerodynamic forces directly. For propellers, wings, and rotors, that can make early-stage design dramatically faster.

The choice of solver comes down to the validity of the assumptions. Stay in the subsonic, mostly attached-flow regime, respect tip-speed limits, feed it sensible airfoil data, and treat the outputs as aerodynamic performance estimates—and a vortex method is the right tool. Stray into stall, shocks, strong separation, or detailed viscous physics, and you'll need higher-fidelity CFD.

With EverySim, the vortex workflow fits naturally into that philosophy. Define your propeller, set your conditions, run without the usual meshing overhead, and review key performance metrics and force histories—all in a fraction of the time and setup a traditional CFD workflow would demand. More ideas tested earlier. Expensive CFD reserved for the conditions that actually earn it.

The surface-mesh approach doesn't reduce the accuracy of the physics you care about—it gives you a faster, lower-cost, and still defensible path to reaching it.

Frequently Asked Questions

Why does the vortex method work from a surface mesh?

Because it doesn't require a volume mesh around the geometry the way traditional high-fidelity CFD does. Instead of filling the entire fluid domain with cells, it starts from the propeller surface geometry and discretizes circulation, vortex elements, and wake structures—tracking aerodynamic behavior directly.

Is vortex analysis less accurate than volume-mesh CFD?

Not inherently. Within its sweet spot—subsonic, attached-flow, lift-dominated aerodynamics—it can be highly effective. But it's less suitable for detailed viscous, turbulent, separated, or compressible flow physics, where high-fidelity volume-mesh CFD is the right tool.

What does VPM stand for?

Vortex Particle Method. It represents the wake using discrete vortex particles, allowing wake evolution to be captured more flexibly than simpler fixed-wake models.

Why is Mach 0.7 a typical limit?

Vortex methods generally assume low-speed, incompressible aerodynamics. When blade tip speed plus freestream velocity pushes past roughly Mach 0.7, compressibility effects become significant and the model's reliability degrades.

What outputs should I check first?

For propellers, start with the core performance metrics: forces, power, and efficiency coefficients (FM). Then review the time-history plots to confirm the solution has stabilized—a single converged value is far more trustworthy than a snapshot from an oscillating run.
